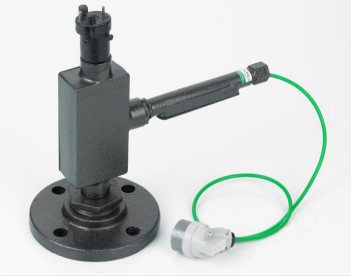

Sampling Cup Stand
Sampling Cup Stand
Description
Heat resistant contact block used to connect molten iron
sampling cups to instrumentation.
The thermocouple contact block has two type K conductors
which provide a good electrical contact between molten
iron sampling cups and the extension cable leading back to
the measuring instrument. Guiding pins ensure the correct
positioning of the cup on the stand and hold it in place
securely.
The stand itself is sturdy and heat resistant protecting the
extension cable from exposure to heat or any splashes of
molten iron.
The extension cable is terminated with a 50V Reyrolle plug
for connection to the Digicarb/14 as standard, however it
can be supplied with a standard 2-pin thermocouple plug
upon request.
Specification
Features
- Type K conductors
- Heat resistant stand
- Guiding pins secure sampling cups in place
- 50V Reyrolle plug
Application
- For use with the Digicarb/14
- Thermal Analysis of Molten Iron
- Used in conjunction with sampling cups
