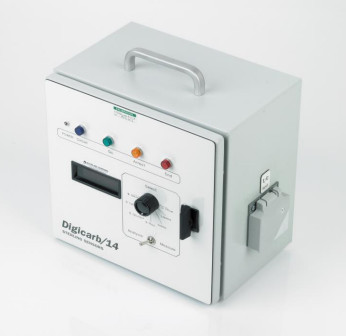

Digicarb/14

Description

DIGICARB/14 is a digital instrument used in the automatic
thermal analysis of molten iron. It is designed for use with
plug-in, fast response, type K thermocouple sample cups.
A 7 position switch enables selection for the continuous
monitoring of:
o Liquidus temperature
o Solidus temperature
o Carbon Equivalent Liquidus (CEL) or C.E. Value (CEV) %
o Carbon %
o Silicon%
o Phosphorus % – a pre-set, adjustable value
o Silicon Offset % – a pre-set, adjustable value
A separate switch allows for the continuous measurement
of the cooling curve temperature, liquidus and solidus
temperatures are momentarily displayed.

Specification

Features

BCIRA formulae, for Tectip/Carbon Cup or QuiK-Cup formulae
Traffic light system keeps the operator informed throughout the analysis/measurement process
Digicarb/14 can be fined tuned to your cooling curve
Can also be used as a carbon and silicon calculator
Displays in degrees Celsius or Fahrenheit
Windows XP and onwards download provided
Steel, dust proof case may be bench, panel or wall mounted
Available with RS232/RS485 outputs for connection to PC, printer or repeat indicator
